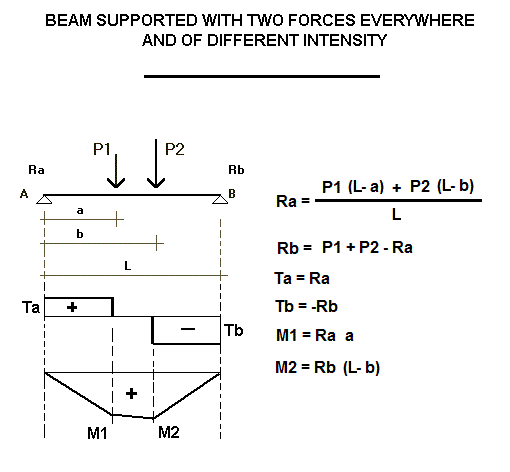

BEAM SUPPORTED WITH TWO FORCES EVERYWHERE AND OF DIFFERENT INTENSITY

BEAM SUPPORTED WITH TWO FORCES EVERYWHERE
AND OF DIFFERENT INTENSITY

Static calculations
* * *

OBJECT:

n° decimal =

INSERT DATA
for decimals put the point
P1 = daN
P2 = daN
L = cm
a = (a <= b) cm
b = (b <= L) = cm
J = moment of inertia cm⁴
W = resistance modulus cm³
E = elasticity module daN/cm²
f amm. = permissible arrow L / cm
permissible tension = daN/cm²

RESULTS

Ra = daN
Rb = daN
M1 = (under load P1) daNm
M2 = (under load P2) daNm
Ta = Ra = daN
Tb = -Rb = daN
tension found under P1= M1/W = daN/cm²
tension found under P2 = M2/W = daN/cm²
f1 = arrow found under P1 = cm
f2 = arrow found under P2 = cm
permissible arrow = cm
1 daN = 1 Kg
