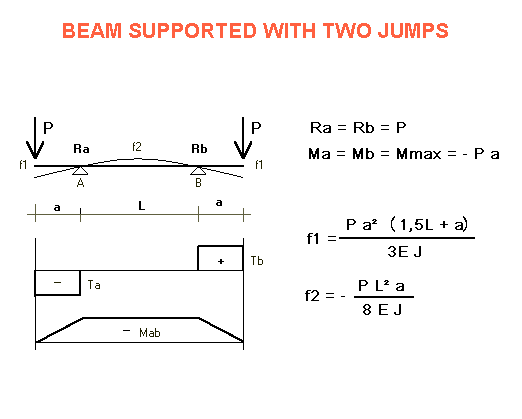

BEAM SUPPORTED WITH TWO JUMPS
Calcoli statici
* * *
OBJECT:
n° decimal =
INSERT DATA
Per i decimali mettere il punto
P =
daN
L =
cm
a =
cm
J = moment of inertia
cm
4
W = resistance modulus
cm³
E = elasticity module
daN/cm²
f permissible = L /
cm
permissible Tension =
daN/cm²
RESULTS
Ra =Rb = P =
daN
Rb =
daN
Ma = Mb = - P a =
daNm
Ta =
daN
Tb =
daN
s
A = tensione found in A =
Ma/W =
daN/cm²
f1 = freccia trovata sulla sporgenza =
cm
f2 = arrow found in the middle =
cm
permissible arrow in the overhang =
cm
arrow allowed in the center =
cm
1 daN = 1 Kg
